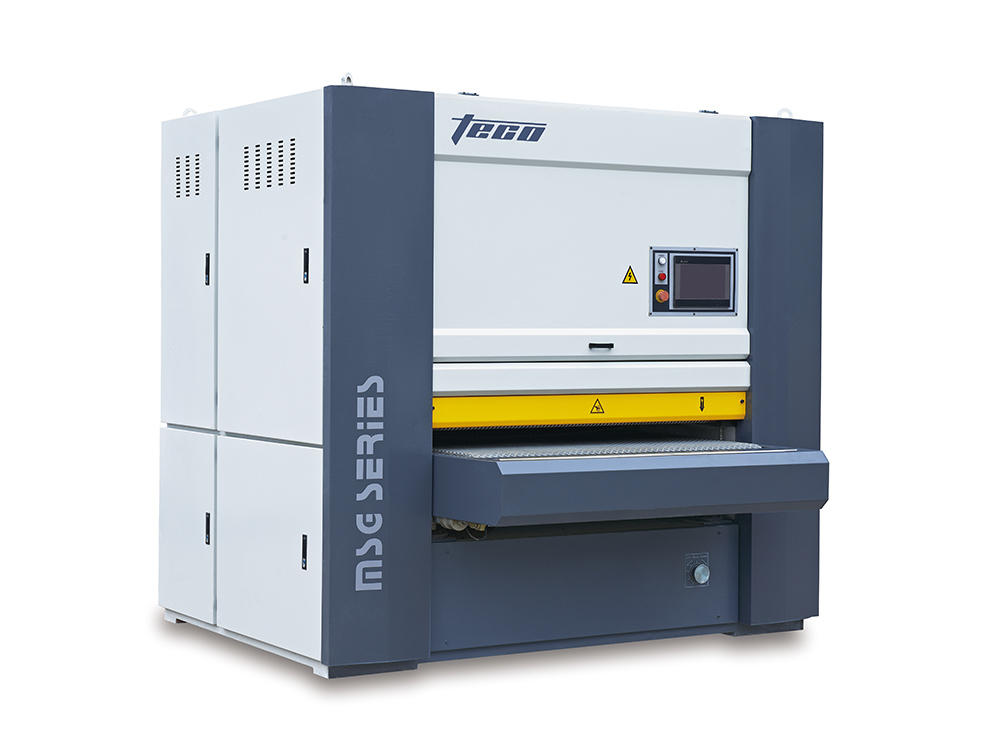

本機型主要使用于貼面板、油漆面及木皮拼花板的精細砂光
|
型號 |
TYPE |
MSG1300R-P |
MSG1000C-P |
MSG1300R-C-P |
|
加工寬度 |
Working Width |
40--1300mm |
40--1300mm |
40--1300mm |
|
加工厚度 |
Working Thickness |
2--110mm |
2--110mm |
2--110mm |
|
加工板材長度 |
Working Length |
≥430mm |
≥430mm |
≥430mm |
|
送料速度 |
Feed Speed |
5--25m/min |
5--25m/min |
5--25m/min |
|
砂帶尺寸 |
Size of Abrasive Belt |
1320*2620mm |
1320*2620mm |
1320*2620mm |
|
電機總功率 |
Total Motor Power |
33.92KW |
33.92KW |
48.92KW |
|
工作氣壓 |
Working Air Perssure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
|
工作電壓 |
Working Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
吸塵風速 |
Speed Of Suckeed Air |
10000m3/h |
10000m3/h |
10000m3/h |
