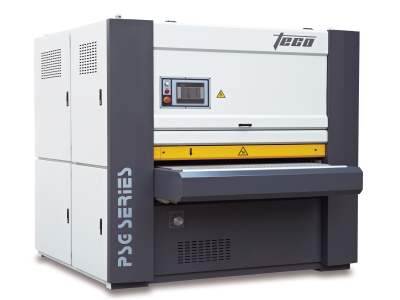

本機型是刨刀及砂帶的組合，適用于實木家具、板材的大尺度砂削
技術參數表：
|
型號 |
TYPE |
PSG630P-R-RP |
PSG1000P-R-RP |
PSG1300P-R-RP |
|
加工寬度 |
Working Width |
30--630mm |
30--1000mm |
30--1300 |
|
加工厚度 |
Working Thickness |
2--100mm |
2-100mm |
2-100mm |
|
加工長度 |
Working Length |
≥420mm |
≥420mm |
≥510mm |
|
送料速度 |
Feed Speed |
5-25m/min |
5-25m/min |
5-25m/min |
|
電機總功率 |
Total Motor Power |
36.25KW |
48.05KW |
78.55KW |
|
止逆裝置 |
Anti Rebound Device |
有 |
有 |
有 |
|
彈力壓靴 |
Press Shoe |
有 |
有 |
有 |
|
工作氣壓 |
Working Air Pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
|
工作電壓 |
Working Voltage |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
吸塵風速 |
Speed Of Suckeed Air |
8200m3/h |
8200m3/h |
8200m3/h |
|
吸塵口直徑 |
Vacuuning Mouth Diameter |
?150*3個 |
?150*3個 |
?200*3個 |
